Model number and name |

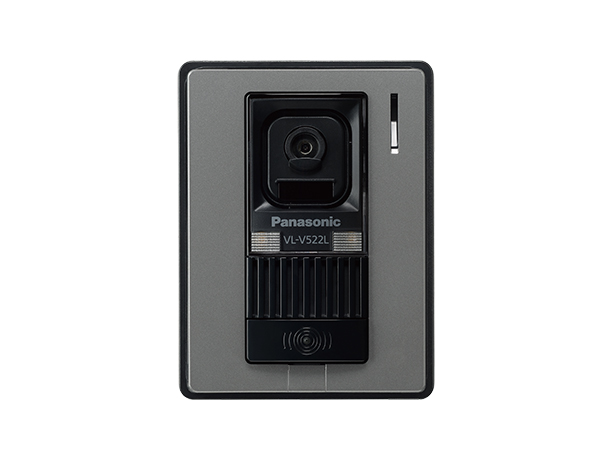

VL-V522L
Door Station(Doorphone) |
|
Power source |
Supplied by the main monitor |
|
Power consumption |
- |
Dimensions (H x W x D)
(Excluding protruding sections) |
131 x 99 x 36.5 mm |
|
Weight |
200 g |
|
Operating environment |
Ambient temperature: Approx. -15 °C to +55 °C
Relative humidity (non-condensing): up to 90 %
(tested up to -20 °C) |
|
Display |
- |
|
Display language |
- |
|
Talking method |
Hands-free |
|
Frequency range |
- |
|
Transmitting range |
- |
|
Viewing angle |
Horizontally: Approx. 87*
Vertically: Approx. 66* |
|
Image sensor / camera (pixel) |
CMOS sensor (Approx. 0.3M pixels) |
|
Minimum illuminance required |
1 lx (within approx. 50 cm from the camera lens) |
|
Lighting method |
Warm white coloured LED lights,
Intrared LEDs |
|
IP rating / IK rating |
IPX3*³ |
|
Installation method |
Surface mount (mounting base supplied) |
|
External material |
Flame retardant ABS resin |
