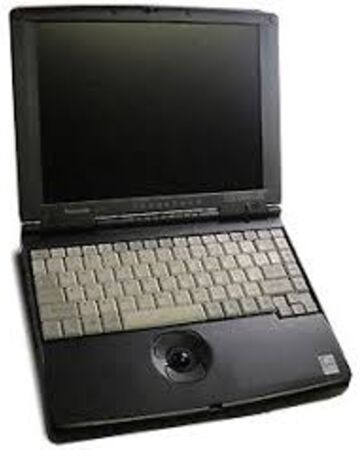

The CF-45 model is one of the earliest models of the Toughbook series. Equipped with an Intel Pentium MMX running at 200 or 233 MHz, it has a base memory of 32MB and is extendable up to 96MB EDO SODIMM via a socket accessible underneath the hard disk.. A 2.5" IDE hard disk interface is included (with stock sizes of 2 and 4GB), slim-line CD and 3.5" floppy drive, as were two PCMCIA slots. Other interfaces on the device were: Infrared port, USB 1.1 interface, one PS2 for either keyboard or mouse, RS232 serial, parallel printer port, 15-pin VGA output, and head-phone and microphone jacks. On the left it sports a small hardware reset button that can be tripped with a pen or other small object. On the bottom of the device, a 100-pin expansion slot is available for docking stations/extensions. The display is a 12.1" TFT with 800x600 pixels resolution and 256k colors.
The battery is a rather compact housing Li-Ion with 10.8V 2.3Ah, which is accessed through a small lid on the bottom, as is the hard disk bay. The power supply supports input voltages of 100–240 V AC, with an output rated at 15.6 V 3.85 A.
