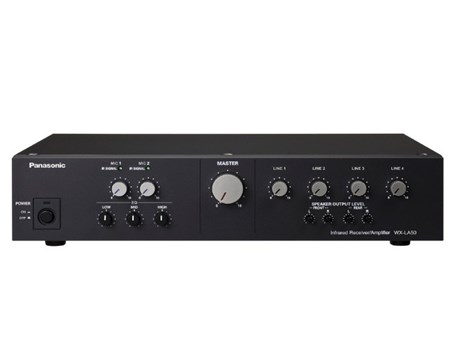

WX-LA50
2ch tuner built-in type 50 W amplier
4 line input and 8 speaker connections
Audio Power 50 W RMS
Stereo 2-Channel Stereo Sound
Frequency Response Microphone to SP output: 100 Hz 10 kHz
Line input to SP output: 50 Hz 15 kHz
Microphone to line output: 100 Hz 10 kHz
Line input to line output: 50 Hz 15 kHz
Power Source 24 V DC (Using the attached AC adaptor unit)
Current Consumption 1.2 A
Sensor Input 75 Ω F-type connector (adjusted infrared sensor: WX-LS100)
Power output for WX-LS100 (22 V DC 100 mA (Max.))
Reception System T.R.F. (turned radio frequency)
Receiving Frequencies Mic 1 : 2.3 MHz
Mic 2 : 2.8 MHz
S/N More than 60 dB
(in 60 dB�V input, �12.5 kHz FM, weighting network A)
Local Controls 2 Mic Volume Controls
3-Band Equalizer
4 Speaker Volume Controls
1 Power Switch
4 Line Input Volume Controls
Voice Mute On / Off
Remote Control - From
WX-LT350 (Microphone) Mic 1 Level
Mic 2 Level
Line Input Level
Connections 4 Stereo Line Inputs
Dedicated Line Output
8 Speaker Connections
Infrared Level Control
Voice Mute
Weight Approx. 3.6 kg
