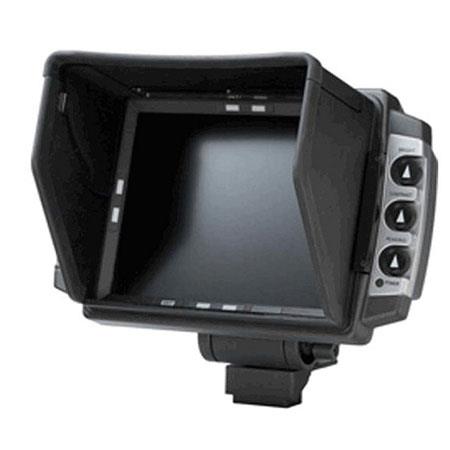

منظره یاب پاناسونیک AK-HVF70G
Panel Size 177.8mm " /7
Number of Pixels 1024 x 600 (WSVGA)
Display Colors Approx. 16, 200, 000 colors
Operation Panel
1x Power switch, 1x Menu button
1x Select dial, 3x Function buttons
3x Picture adjusting knobs
([Bright], [Contrast], [Peaking])
-
Connectors Camera I/F connector (1x D-Sub 29-pin)
-
Power Supply DC 12 V (supplied by the camera)
-
Power Consumption W10
-
Operating Temperature 0deg.to 45 deg.C / 32 deg. to 113 deg.F
-
Storage Temperature
-
-20 deg.to 60 deg.C / -4 deg.to 140 deg.F
-
Operating Humidity 10% to 85% (no condensation)
-
Dimensions (W x H x D
243.5 x 212 x 172mm / 9.59 x 8.35 x 6.77" (with hood attached)
243.5 x 212 x 85mm / 9.59 x 8.35 x 3.35" (without hood)
Weight Approx. 3.53lbs / 1.6kg (without hood
