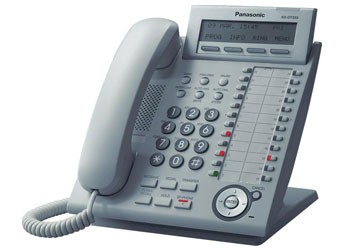

تلفن پاناسونیک KX-NT343
|
CD |
24 Characters x 3 Lines |
|
|
|
|
|
|
|
|
|
|
SP Phone |
Yes |
|
2nd Ethernet Port (For PC) |
Yes |
|
LCD Backlight |
Yes |
|
Handset Volume Control |
4 Levels Electric vol. |
|
SP-Phone (Monitor) Volume Control |
12 Levels Electric vol. |
|
Ringer Volume Control |
4 Levels Electric vol.+ Off position |
|
|
|
|
LCD Contrast Control |
4 Levels |
|
Message/Ringer Lamp |
Yes *4 |
|
Whisper OHCA |
Yes |
|
Headset Jack (Ø2.5mm) |
Yes |
|
Auto Redial |
Yes *6 |
|
Off-Hook Monitor |
Yes |
|
Handset/Headset Mic Mute |
Yes |
|
Speaker Phone Mic Mute |
Yes |
|
Phone Directory |
Yes |
|
Feature Access |
Yes |
|
(Out-going) Call Log |
Yes |
|
(In-coming) Call Log |
Yes |
|
Melody Ringer |
10 Titles |
|
Wall Mount |
Possible |
|
Peer-to-Peer Connection |
Yes |
|
Automatic rerouting to secondary PBX |
Yes |
|
VLAN |
Yes |
|
QoS |
DiffServ |
|
Max. Jitter Buffer Size |
200 ms |
|
DHCP Client |
Yes |
|
Wideband CODEC |
Yes |
|
System Programming |
Yes |
|
Station Programming |
Yes |
|
Local Programming |
Yes |
|
Operating Temperatures |
0-40 degree centigrade |
|
Dimensions : W x D x H mm |
202x240x129mm (Low angle:Tilt 15deg.)
202x201x211mm (High angle:Tilt 45deg.) |
|
Weight : Kg |
1.25kg |
|
Option Unit Connention |
KX-NT303 Add-on 12 Key Module |
Yes |
|
KX-NT305 Add-on 60 Key Module sup*2/sup |
Yes |
|
KX-NT307 Bluetooth® Module |
Yes |
|
Optional AC Adaptor |
KX-A239 |
|
NOTE |
*1 KX-NT366 is only available for KX-TDE100/KX-TDE200.
*2 KX-NT305 is only available for KX-TDE100/KX-TDE200.
*3 G.722 is only available for KX-TDE100/KX-TDE200.
*4 Dual-coloured LED (Green & Red)
*5 Single coloured LED (Red)
*6 Auto Redial feature is available on digital CO |
|
CO keys |
24 |
|
Self Labelling |
No |
|
CODEC sup*3/sup |
G.729A, G.711, G.722 |
|
Power Supply |
AC Adaptor, and Power over Ethernet (Power over LANTM (IEEE802.3af Class2)compliant) |
