Picture Quality |
Display |
Panel |
4K ULTRA HD LED LCD |
4K PRO |
Y |
Bright Panel |
Super Bright Panel Plus |
Screen Resolution |
3,840 (W) x 2,160 (H) |
Panel Drive |
4K 2200 Hz BMR |
Picture Mode |
Dynamic/Normal/Cinema/True Cinema/Custom |
Signal Processor |
Studio Color HCX2 |
Hexa Chroma Drive |
4K Hexa Chroma Drive PRO |
Vivid Digital Pro |
— |
4K Upscaling |
Y |
Ultra HD Premium*1 |
— |
HDR |
Y (Multi HDR Support) |
Pixel Dimming |
— |
Local Dimming |
Y |
Adaptive Backlight Dimming |
— |
Noise Reduction |
Y(Multi Noise) |
THX Certified Display*2 |
— |
4K Pure Direct |
Y |
isf Mode |
— |
3D Look Up Table |
Y |
3D |
Y (Active) (Glasses are not included) |
Sound Quality |
Surround |
VR-Audio True Surround |
Speakers |
Full Range x 2 |
Speaker Output |
20 W (10 W x 2) |
Sound Mode |
Standard/Music/Ambience/User |
Smart Features |
Smart TV |
Y |
my Home Screen |
Y (2.0) |
Info Frame |
Y |
Voice Interaction |
Voice Interaction |
Y |
Voice Guidance |
Y |
EPG |
SI, 7 days |
On Screen Display Menu Languages |
9 Languages*11 |
Unique Processing Engine |
Quad-Core Pro |
Wireless LAN Built-in |
Y |
Panasonic Media Center (App) |
Panasonic Media Center (App) |
— |
TV Anytime*3 |
— |
USB-HDD Recording |
— |
Panasonic TV Remote Apps |
Panasonic TV Remote Apps |
Y |
Swipe & Share |
Y |
Smart Calibration |
— |
Internet Apps |
Internet Apps |
Y |
Web Browser*4 |
Y |
Mirroring |
Y (Easy) |
DLNA*5 |
Y (DMP/DMR/DMS) |
Bluetooth*6 |
Y (Keyboard/Mouse) |
Media Player |
Media Player |
Y (2.0 *7) |
Support Format |
AVI/HEVC/MKV/WMV/MP4/M4v/FLV/3GPP/VRO/VOB/TS/PS/RMVB, MP3/AAC/WMA Pro/FLAC/Apple Lossless/WAV, JPEG/MPO |
Double USB Sharing |
Y |
|
|
|
|
|
|
VIERA Link |
Y |
Energy Data |
Visible Screen Size (diagonal) |
164 cm |
Rated Power Consumption |
196 W |
Standby Power Consumption |
0.5 W |
Power Supply |
AC Auto 110 - 240 V, 50/60 Hz |
Ambient Sensor |
Y |
Terminal |
Digital Tuner Reception |
DVB-T/T2 (MPEG2, H.264/AVC) |
Analogue Tuner |
World 17-System |
HDMI |
HDMI*8 |
3 (side), 1 (rear) |
HDMI (4K 60/50p with HDCP2.2) |
4 |
Support Feature |
Audio Return Channel (Input 2) |
USB |
3 (1 side, 2 rear; USB 3.0 x 1, USB 2.0 x 2) |
LAN Port |
1 |
|
|
Component Video Input shared with Composite |
RCA phono type x 1 (rear) |
Composite Video Input |
RCA phono type x 1 (rear) |
Digital Audio Output (Optical) |
1 (rear) |
Analogue Audio Output |
— |
Headphone Output |
1 (side) |
GENERAL |
Included Accessory*9 |
TV Remote |

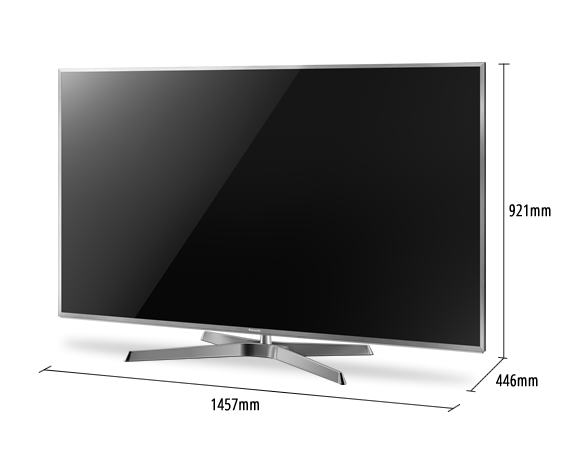

Dimensions (W x H x D) (w/o stand) |
1457 x 841 x 52 mm |
Dimensions (W x H x D) (with stand)*10 |
1457 x 921 x 446 mm |
Weight (w/o stand) |
39.0 kg |
Weight (with stand) |
43.5 kg |
VESA Compatible |
Y |
|
|
NOTE |
*2 THX and the THX logo are trademarks of THX Ltd. which are registered in some jurisdictions. The THX 3D logo is a trademark of THX Ltd. All rights reserved. |
NOTE |
*3 Due to network conditions or certain broadcaster restrictions, this function may not be available. |
NOTE |
*4 The Web Browser cannot display some web pages correctly. And viewable contents by VIERA Web Browser are subject to the following conditions; |
NOTE |
- viewable contents may vary depend on models, |
NOTE |
- viewable contents may differ from those for PC, |
NOTE |
- viewable contents may be limited. |
NOTE |
*5 DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance. |
NOTE |
*6 HID (Human Interface Device Profile) compliant keyboards are available. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. |
NOTE |
*7 To playback HDR, a HDR source is required (H.264 or H.265(ST2084 or HLG format)). |
NOTE |
*8 The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries. |
NOTE |
*9 Not all the accessories are listed here. |
NOTE |
*10 Dimension with recommended pedestal style. |
NOTE |
*11 9 Languages (English/Chinese (Simplified)/Arabic/Persian/French/Thai/Vietnamese/Indonesia/Hindi) |
