SIP Trunking
• ISDN Primary Rate Interface (PRI) with QSIG
• PC-Based Programming
• DXDP (Digital Extra Device Port)
• Automatic Route Selection (ARS)
• Toll Restriction
• Digital Voice Mail Integration
• Enhanced System Networking
• Uniform Call Distribution (UCD)
• Direct Inward System Access (DISA)
• IP Address is built into the MPR
•• T1 for Trunking and Point-to-Point
• Analog (POTS) CO Line Trunking
• Caller ID (Name & Number)
• VoIP Gateway with QSIG (Enhanced System Networking)
• VoIP Extensions (Proprietary and SIP)
• DECT Multi-Cell Wireless
IP Gateway is built into the DSP Card

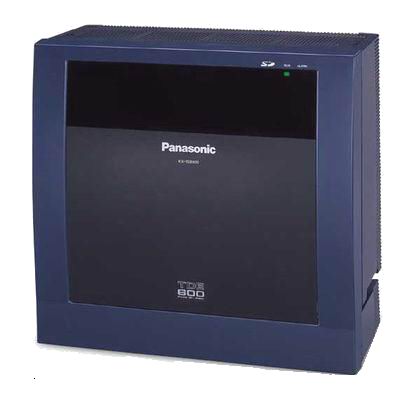

KX-TDE600 BASIC SHELF KIT (Main Unit)
Contains:
1 Physical Shelf with 10 Free Universal Slots
1 Virtual Shelf with 2 Trunk Slots & 2 Trunk Slots & 2 Extension Slots
1 Main Processor Unit
1 SD Card
KX-TDE620 EXPANSION SHELF KIT (Expansion Unit)
Contains:
1 Add-on Shelf with 11 Free Universal Slots
1 BUS-S Card.
NOTE: Power supply or accessory cards are not included with either the KX-TDE600 or the KX-TDE620 and must be added as needed based on a specific configuration.
A maximum of three (3) KX-TDA620 Expansion Shelves can be connected to a KX-TDE600 Basic Shelf. Before adding Expansion Shelves, a BUS-M (KX-TDA6110) and a BUS-ME (KX-TDA6111) card must be installed in the KX-TDE600 Basic Shelf.
Maximum System Capacity
Number of Free Slots
|
|
|
Shelf 1
(Basic) |
Shelf 2
(Exp) |
Shelf 3
(Exp) |
Shelf 4
(Exp) |
|
Slots Per Shelf |
10 |
11 |
11 |
11 |
|
Slots Per Shelf Accumulative |
10 |
21 |
32 |
43 |
Number of Ports
|
|
Trunks |
192 |
352 |
512 |
640 |
|
Extensions |
DPT Port |
256 |
512 |
640 |
640 |
|
SLT Port |
303 |
608 |
880 |
1120 |
The KX-TDE600 Main Unit Physical Shelf has a total of 10 Free Universal Slots. Universal, meaning any slot can accommodate any type of trunk, extension or option card (with limitations). The density of each card varies by type. For instance ... Co Trunk Cards are available in 16 or 24 trunks per card. ISDN-PRI and T1 cards are available in 23 channels (trunks) per card and 24 channels (trunks) per card respectively. Extensions are available in 8/16 per card or 16/32 using the DXPD feature. Each time you populate a slot with a physical card, you are effecting the ratio of Trunks -to- Extensions. Example: A configuration using all 192 Trunks from the Main Shelf Physical Slots means that there is no room for physical extensions or special option cards such as Door Controllers, UCD/DISA, etc. Likewise, a configuration using all physical slots for extensions means that there is no room for Trunks or special option cards such as Door Controllers, UCD/DISA, etc.
The KX-TDE600 Virtual Shelf has a total of 4 Slots - 2 are Trunk related and 2 are Extension related. Each trunk slot can accommodate 32 trunks for a total of 64 Virtual Trunks. Slots accept either SIP CO Lines or H.323 CO Lines provided that no more than 32 of these are H.323.
Totals are somewhat dynamic. Even though the maximum number of trunks is 640 and the maximum number of extensions is 640 DPT or 1120 SLT, you cannot realize both at the same time since you would run out of slots.
